12x2w high power landscape spot lights, RGB 3in1 led garden spot lights, ip68 ce & rohs landscape spot lights, led lights-comlite led limited
Features:
1.In high voltage mode, the bottom base is allowed to be put high voltage module inside.
2.In low voltage mode, the bottom base is a waterproof connection box.
Specifications:
Housing:12# die-casting grey powder coated aluminum. T=50-55um Adhesion of ISO class 1/ASTM class 4B
Bracket:Powder coated aluminum
Glass:tempered glass T=4mm
Lens:All-in-one optical lens, efficiency≥85%
Cable gland:IP-68 PG-9 PVC
Gasket:Tooling shaped seal
Power cable:H05RN-F 3X1.0m㎡ L=2m (high voltage)
H05RN-F 4X0.75m㎡ L=2m (for RGB)
Mounting base:Powder coated die-casting aluminum

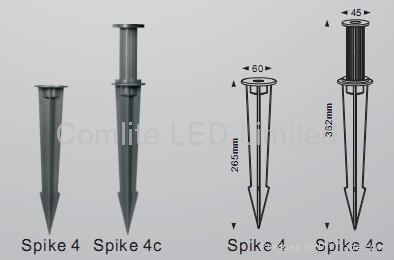

Spike:Powder coated die-casting aluminum
Technique Parameters:
| Item No. |
Light Source |
Lens Beam Angle |
Input Voltage(v) |
Typical Operating Current(mA) |
Typical Consumption(w) |
Typical Luminance (lm) |
| B3BD1216 |
12x2W |
15 |
24VDC
120VAC
240VAC |
938
337
165 |
22.5
24
24 |
cool white=950
warm white=810 |
| B3BD1218 |
12×2W
RGB 3in1 |
25 |
24VDC |
R=255
G=440
B=466 |
R=6.1
G=10.6
B=11.2 |
R=210
G=315
B=92 |
| B3BDB1216 |
12x2W |
15 |
24VDC
120VAC
240VAC |
938
337
165 |
22.5
24
24 |
cool white=950
warm white=810 |
| B3BDB1218 |
12×2W
RGB 3in1 |
25 |
24VDC |
R=255
G=440
B=466 |
R=6.1
G=10.3
B=11.2 |
R=210
G=315
B=92 |
